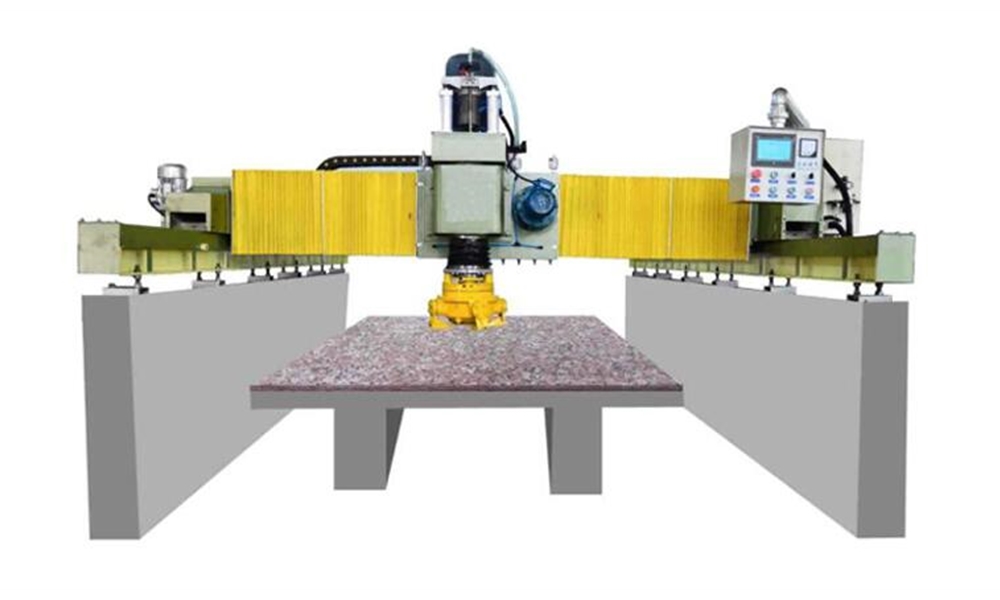

Name：DTM320 * 220 bridge mill
Details
It applies to marble or granite tombstone stone plate and fine grinding and polishing. Using the PC programming, automatically tilting grinding longitudinal waves, shear waves, grinding cycle.| The maximum specification of grinding and polishing panels（L×W） | 3200×2000mm |
| The maximum thickness of grinding and polishing panels | 60mm |
| The number of grinding head | 1 |
| Total power | 12.5kw |
| Overall dimension（L×W×H） | 4500×4340×2420mm |
| Weight | about 4200kg |
| Air demand | 0.1m3/min |
|
